Kleenfuel ELAIS - Portable Fuel Filtration System

The Kleenfuel ELAIS System is an affordable, ethical, and high-impact product in the fuel cleaning market.

KLEENFUEL ELAIS – Portable Fuel Filtration System

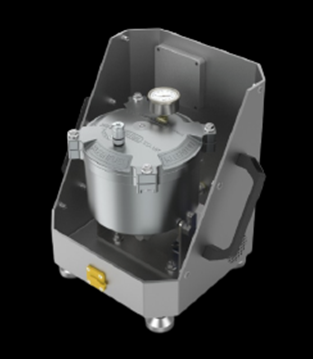

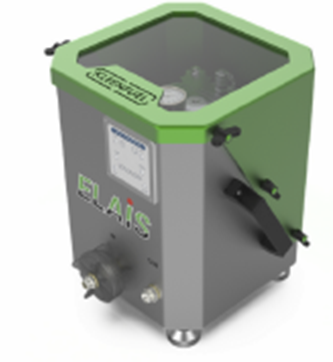

Elais™ is a compact, portable diesel fuel cleaning unit engineered for continuous removal of particulates (down to 3 microns), water, and ferrous contaminants.  Housed in a rugged 16-inch cube and powered by a 12V or 240V pump, it combines Kleenoil Kleenfuel™ depth filtration with a built-in magnetic core for advanced fuel polishing. Designed for use during storage, transfer, or in-tank circulation, Elais ensures ISO-clean diesel—protecting modern engines, reducing emissions, and supporting compliance with Euro 6, Stage V, and Tier 4 standards.

The Blakey Brothers Demo the new Kleenfuel ELAIS System Video:

https://www.facebook.com/watch/?v=1055723203372865

Key Benefits of Elais™

  1. ISO-Clean Fuel Quality
    1. Removes particles down to 3 microns absolute
    2. Achieves ISO 18/16/13 or better fuel cleanliness
  2. Complete Water Removal
    1. Absorbs free, emulsified, and suspended water
    2. Prevents corrosion, microbial growth, and injector damage
  3. Magnetic Filtration Core
    1. Integrated 4000-gauss magnet captures all ferrous debris
    2. Adds a secondary layer of protection for sensitive fuel systems
  4. Flexible Power Options
    1. Operates on 12V battery, 240V mains (via converter), or Kleenoil power pack
    2. Ideal for field use, workshops, or mobile setups
  5. Multi-Mode Operation
    1. Use for in-tank circulation, fuel transfers, or scheduled cleaning cycles
    2. Cleans fuel while machines are running, idling, or shut down
  6. Low Maintenance
    1. Only requires a quarterly Kleenfuel™ cartridge change and magnet wipe
    2. Clear prefilter allows for instant visual inspection
  7. Visual & Verified Results
    1. Supports before-and-after fuel sampling
    2. Optional lab-tested ISO cleanliness reports available
  8. Portable & Compact Design
    1. Lightweight, rugged 16-inch metal housing
    2. Includes optional carry strap for easy transport
  9. Emissions & Engine Protection
    1. Improves fuel combustion efficiency
    2. Reduces DPF regenerations and supports Tier 4 Final / Euro 6 compliance
  10. OEM Warranty & ESG Support
    1. Aligns with manufacturer fuel cleanliness specs
    2. Helps meet environmental targets and extend equipment life

KLEENFUEL ELAIS - Smart Fuel Cleaning for Demanding Operations

As modern diesel equipment becomes more sophisticated, the risk of fuel-related failures grows. That’s why we’ve developed KLEENFUEL ELAIS—an enhanced mobile filtration system that brings precision fuel polishing, fuel drying and next-level contamination control into one rugged, field-ready unit.

Built for harsh environments, remote operations, and fuel-critical industries, but equally desirable for leisure boats, service work and tank cleaning, Our commitment to clean diesel, smarter service, and total system protection.

ELAIS – Where the Legacy of Oil Meets the Innovation of Today.

Inspired by the first goddess of oil, built to power the future. Born of legacy. Built for tomorrow.

What Sets ELAIS Apart?

 The ELAIS system is designed not only for mobility—but also for permanent integration onto fuel tanks in vehicles, boats, generators, buses, and more. Wherever a direct feed and return line to the tank is available, ELAIS can be mounted to provide either continuous filtration or scheduled timed cycles, ensuring that the fuel inside the tank—and ultimately reaching the engine—remains cleaner than new.

This proactive approach eliminates the common issues associated with fuel degradation, water ingress, and particulate buildup. Especially in applications like standby generators, where fuel sits unused for extended periods, ELAIS removes the need for disruptive routine fuel tank cleaning—offering a reliable, automated safeguard that keeps systems running at peak condition when they’re needed most.

KLEENFUEL ELAIS is the finest level of fuel filtration designed to give operators confidence in every quart of diesel delivered or recirculated.

Core features include:

  • Crucial water removal and particulate filtration to below 3 microns
  • 4000 gauss magnetic core to trap submicron levels of ferrous
  • 12v/24 , XT60 easy connection to existing batteries, or the Elais battery pack, or through a converter to mains.
  • Fast/slow modes
  • Visual prefilter
  • Pressure gauge
  • Anti vibration feet
  • Easy to carry with carry straps and handles at only 16.5k
  • Incorporates the KLEENFUEL Unit

Whether you’re transferring fuel to a fleet, servicing contaminated tanks, or conditioning stored diesel, ELAIS ensures it’s done cleanly, safely, and intelligently.

The Risks of Dirty Fuel – Why ELAIS Is Critical

Modern common-rail diesel engines and Tier 4/Stage V emissions systems are incredibly sensitive to contamination. Even tiny particles or emulsified water can cause:

  • Injector erosion or blockage
  • Fuel system shutdowns
  • Unscheduled maintenance
  • Power loss and higher fuel burn
  • Costly warranty issues

ELAIS mitigates these risks by filtering fuel to well below OEM cleanliness requirements, ensuring it meets ISO standards before entering the machine—protecting injectors, pumps, DPF systems, and your bottom line.

Smart, Mobile, and Versatile

ELAIS is ideal for use in:

  • Fuel depots and fleet yards
  • Construction and heavy plant sites
  • Marinas and shipyards
  • Remote mining, forestry, and off-grid operations
  • Generator commissioning and maintenance

Whether used on the move or as a permanent station, ELAIS fits seamlessly into proactive fuel maintenance strategies—helping reduce failures, emissions, and unplanned downtime.

KLEENFUEL ELAIS – Simple to Use, Powerful in Action

Despite its intelligence, ELAIS keeps things practical:

  • Plug-and-play operation
  • Minimal training required
  • Disposable Kleenfuel cartridges for clean, fast changeovers
  • Built on KLEENOIL’s proven cellulose filtration technology for superior dirt-holding and moisture absorption

It’s advanced—but never over-engineered.

Protecting Fuel, Supporting Sustainability

ELAIS doesn’t just clean fuel—it helps reduce wasted diesel, failed components, and unnecessary replacements. That means lower emissions, longer service life, and fewer materials consumed over time.

And as part of KLEENOIL’s broader sustainability mission, we’re committed to ensuring ELAIS filtration cartridges are manufactured in recyclable materials for safe, responsible disposal—closing the loop on clean fuel management.

KLEENFUEL ELAIS – Fuel Filtration, Reinvented

If you’re serious about uptime, fuel efficiency, and equipment health, KLEENFUEL ELAIS is your go-to solution. Purpose-built for real-world operations. Powered by Kleenoil expertise. Ready for whatever fuel challenges lie ahead.

Kleenfuel ELAIS - Portable Fuel Filtration System Downloadable Brochure, Tech Sheets and Studies

Filename Size Date & Time
An Adobe Acrobat file Kleenfuel ELAIS - Technical Datasheet 1.19 MB 2025-07-03 11:27:51
An Adobe Acrobat file Kleenfuel ELAIS Brochure 4.6 MB 2025-07-03 11:27:52
